CD: ArgoCD — Update and Deploy

Summary

This post covers the deployment stage of the pipeline — the CD (Continuous Deployment) phase that picks up where the CI build leaves off. The CI job pushed a freshly built image to Harbor; this CD job rewrites the image tag in a GitOps repo and lets ArgoCD reconcile the cluster.

Helm is Kubernetes’ package manager — it bundles K8s manifests into reusable, parameterized charts, with values files (e.g. values-dev.yaml) that parameterize each environment’s deployment. Keeping those values files in Git is the Infrastructure-as-Code half of this pipeline: a single imageTag change in values-dev.yaml is what triggers a deployment — no manual kubectl needed.

GitOps = the cluster’s desired state lives declaratively in Git; an agent (ArgoCD here) reconciles the running cluster to match. Updates happen via commits, not kubectl.

CD Overview

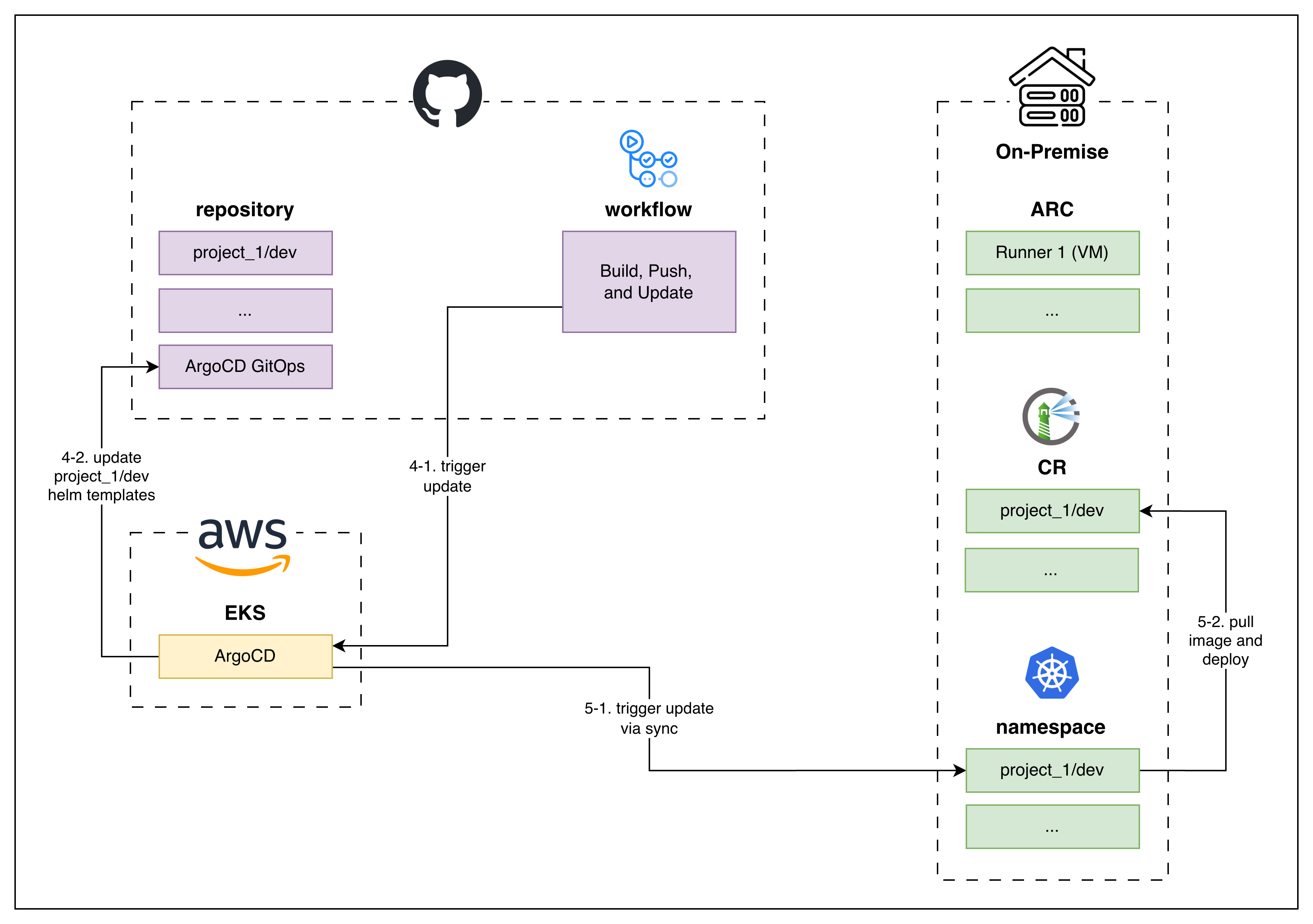

CD architecture: GHA updates the GitOps repo → ArgoCD syncs → workload cluster pulls the new image

The stack:

• Source Code Management → GitHub
• Workflow Orchestrator (the brain) → GitHub Actions
• Container Registry → Harbor (self-hosted)
• GitOps Engine → ArgoCD (running on EKS)
• Workload Cluster → On-premise Kubernetes

The arrows on the diagram show the CD handoff: GitHub Actions edits dx-infra-config (the GitOps repo) → ArgoCD detects the change → ArgoCD applies the updated manifests; Kubernetes pulls the new image from Harbor and rolls out the new pods.

Under the Hood

name: Docker Image Build and Push & ArgoCD Helm Update

on:
  push:
    branches: [dev]

permissions:
  id-token: write
  contents: read

concurrency:
  group: build-push-deploy-$
  cancel-in-progress: true

jobs:
  # ─── Stage 1: Docker Image Build and Push to designated Registry ───
  build-and-push:
    name: Build and Push
    runs-on: [self-hosted, arc-$]
    environment: $

    outputs:
      image_tag: $

    # ... omitted, see the CI post for details ...

  # ─── Stage 2: ArgoCD GitOps (dx-infra-config) Helm values update ───
  update:
    name: Update
    needs: build-and-push
    runs-on: [self-hosted, arc-$]
    environment: $

    env:
      TARGET_BRANCH: idcx-$
      IMAGE_TAG: $

    steps:
      - name: Generate GitHub App token
        id: app-token
        uses: actions/create-github-app-token@v1
        with:
          app-id: $
          private-key: $
          owner: Wondermove-Inc
          repositories: dx-infra-config

      - name: Checkout dx-infra-config Repository
        uses: actions/checkout@v4
        with:
          repository: Wondermove-Inc/dx-infra-config
          ref: $
          token: $

      - name: Pull Latest to Avoid Conflicts
        run: |
          git pull origin $ --rebase \
            || (echo "Rebase conflict; aborting" && git rebase --abort && exit 1)

      - name: Install yq (YAML processor)
        run: |
          curl -fsSL https://github.com/mikefarah/yq/releases/latest/download/yq_linux_amd64 -o "$RUNNER_TEMP/yq"
          chmod +x "$RUNNER_TEMP/yq"
          echo "$RUNNER_TEMP" >> "$GITHUB_PATH"

      - name: Determine helm values file
        id: values
        run: |
          HELM_VALUES="helm/idcx-was/values-$.yaml"
          echo "helm_values=$HELM_VALUES" >> $GITHUB_OUTPUT
          echo "Helm values file: $HELM_VALUES"

      - name: Update Rollout imageTag
        env:
          HELM_VALUES: $
        run: |
          echo "Updating app.imageTag to ${IMAGE_TAG}..."
          yq eval ".app.imageTag = \"${IMAGE_TAG}\"" -i $HELM_VALUES
          echo "Updated $HELM_VALUES"

      - name: Commit & Push
        run: |
          git config user.email "ci-bot@github.com"
          git config user.name  "GitHub Actions"
          git commit -am "[idcx-was] Deploy ${IMAGE_TAG}" \
            || echo "No changes to commit"
          git push origin $

          echo ""
          echo "Pushed update to dx-infra-config"
          echo "ArgoCD will detect the change and sync the cluster"
          echo ""

Values fetched via vars.* and secrets.* live in the GitHub Actions secrets and variables tab: project repository → Settings → Secrets and variables → Actions. vars are plain-text, secrets are encrypted at rest and masked in logs.

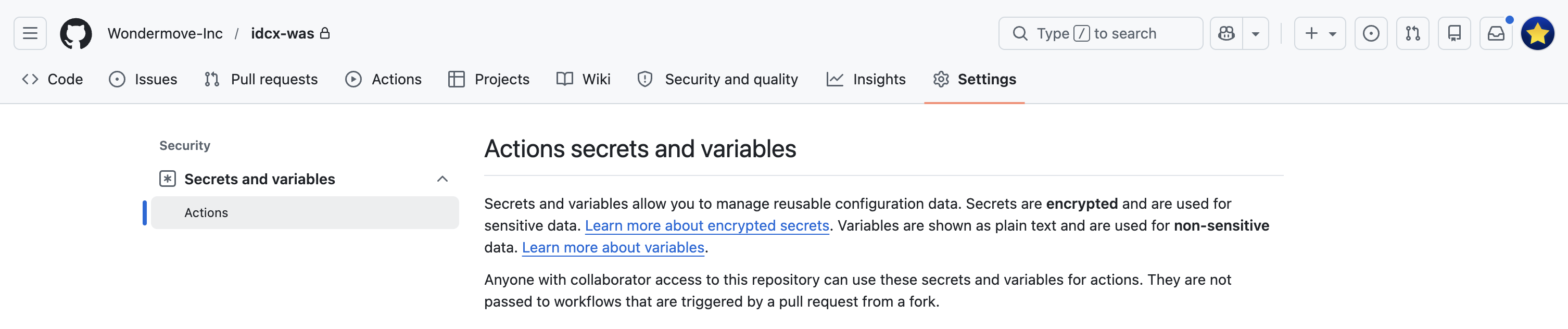

Where vars.* and secrets.* are configured

A few framing keys on the yaml above:

• needs: build-and-push — this update job only runs if the CI build-and-push job succeeded, so a broken build never triggers a deployment.
• IMAGE_TAG: $ — carries the short commit SHA from the CI job forward, so the tag written into Helm values is exactly the image that was just pushed to Harbor.
• TARGET_BRANCH: idcx-$ — commits to a per-environment branch on dx-infra-config (the GitOps repo), so each environment’s deployment state is isolated.
• GitHub App token (not PAT) — the Generate GitHub App token step issues a short-lived token scoped to a single repo (dx-infra-config). This is the right pattern when one repo’s workflow needs to write to another repo: less blast radius than a personal access token, and not tied to any single user account whose departure would invalidate it.

End-to-end the CD process is:

1. Retrieve a GitHub Repository Access Token — actions/create-github-app-token mints a short-lived token scoped to dx-infra-config.
2. Update Helm values — checkout dx-infra-config, install yq, rewrite app.imageTag in the per-environment values file.
3. Commit & push to the GitOps repo — the bot pushes the values change to the target branch on dx-infra-config.
4. ArgoCD syncs the workload cluster — outside of GitHub Actions: ArgoCD detects the new values and reconciles the cluster.

In Action

Here’s the workflow running end-to-end. The demo covers the full CI/CD pipeline — GitHub Actions, ArgoCD, ARC, Harbor all wired up — though the CI half is covered in a separate post.

Live demo: the full CI/CD pipeline

Here’s a sample run, triggered by merging a PR to dev:

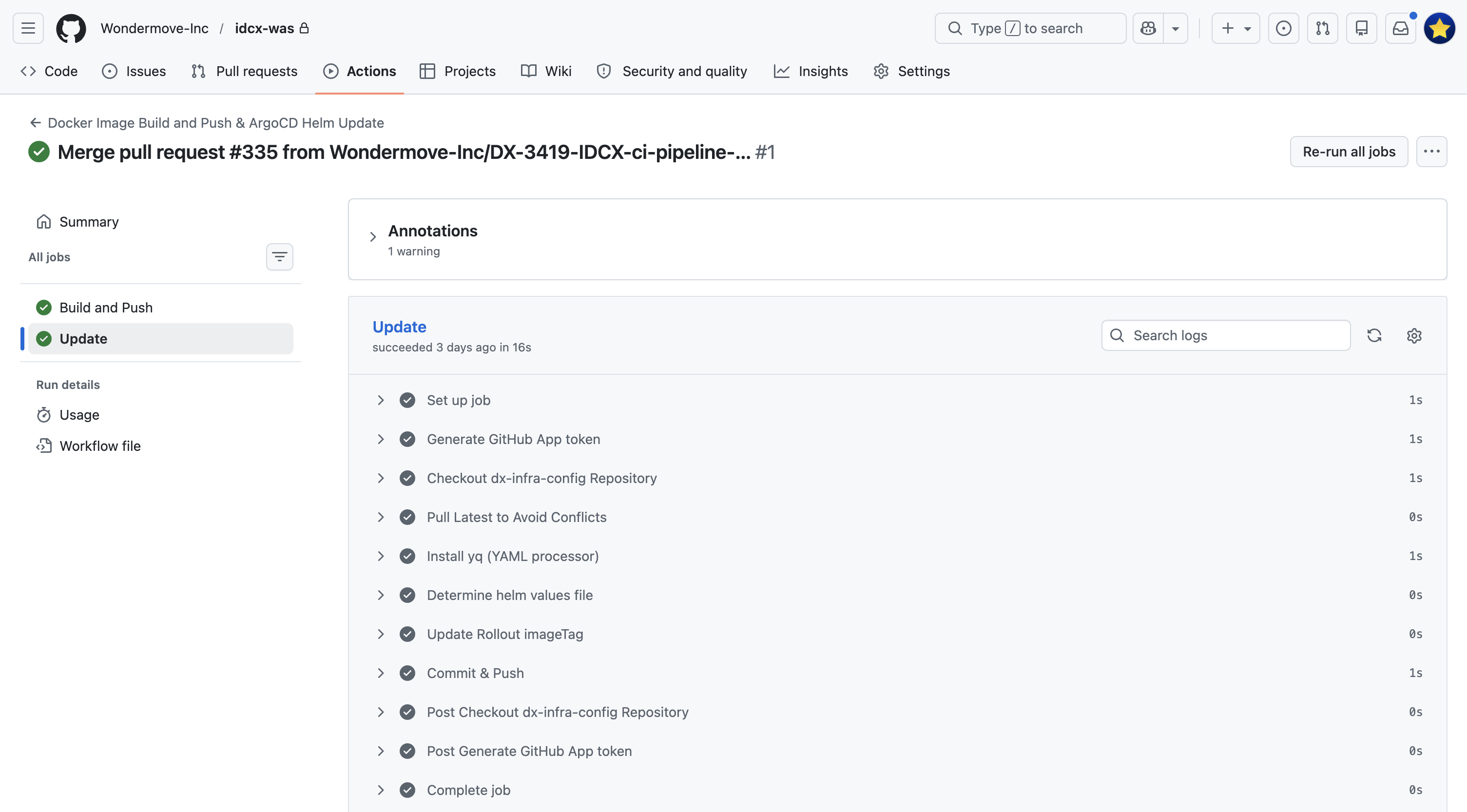

All steps in the Update job

The screenshots below walk through the GitHub Actions side of the four steps, in the order they execute:

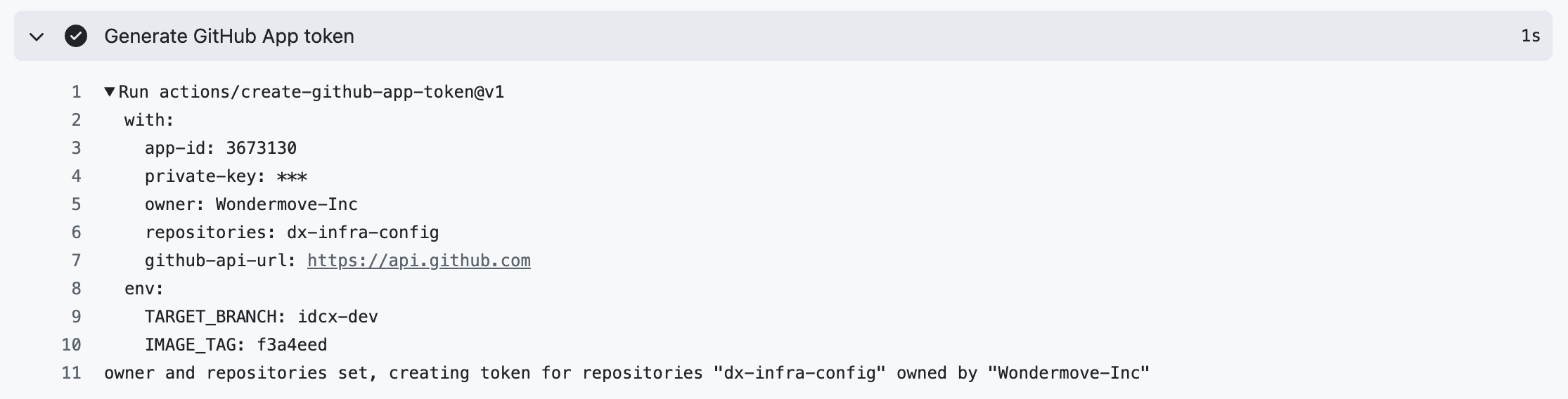

Step 1 — Generate a short-lived token scoped to dx-infra-config

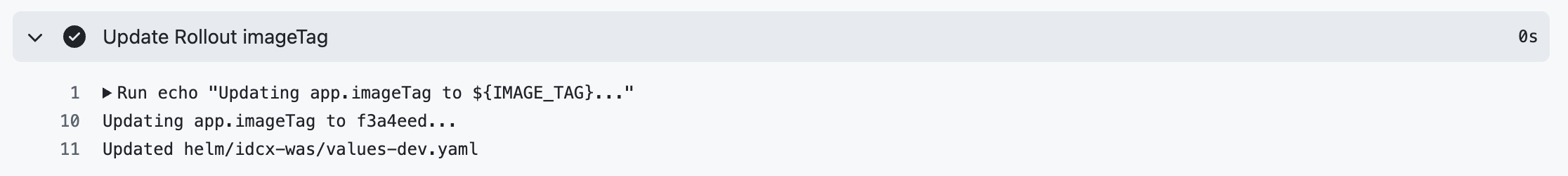

Step 2 — yq rewrites app.imageTag in the per-environment values file

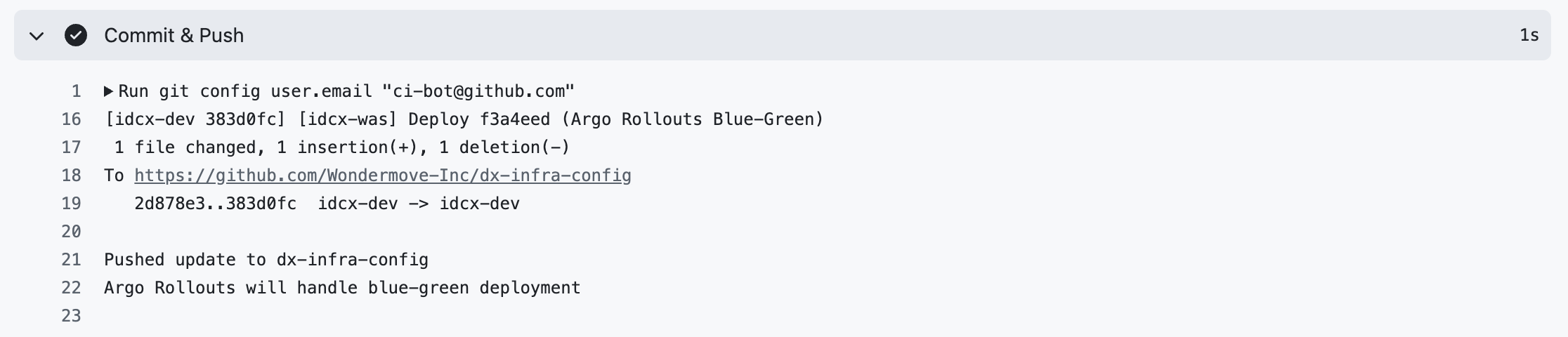

Step 3 — The bot commits the values change and pushes to the target branch

Step 4 — ArgoCD takes over. Once the commit lands in dx-infra-config, GitHub Actions is done. ArgoCD is configured to watch that repo; it detects the new imageTag, marks the Application out-of-sync, and reconciles the cluster against the updated values.

Closing the Loop

That closes the loop: a merge to dev triggers CI → CI builds and pushes an image to Harbor → CD edits Helm values in dx-infra-config → ArgoCD reconciles the cluster. From a developer’s perspective, the only action was the merge.
